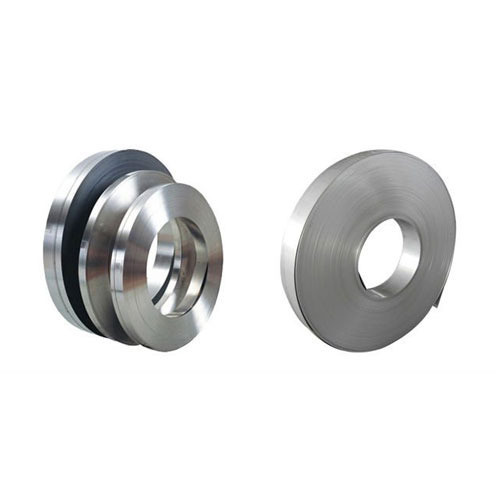

2A16 (LY16) Aluminum Strip
Project Introduction
Application:
Transformer Aluminum Strip (Transformer Aluminum Foil), hollow glass aluminum strip, Radiator Aluminum Strip, Cable Aluminum Strip, Stamping Aluminum Strip, etc.
The raw material of aluminium strip is pure aluminium or aluminium alloy .The strip is rolled into thin sheet aluminium coil with different thickness and width by cold rolling mill. According to its use, the strip is longitudinally divided into different width aluminium strips by longitudinal shearing machine.
Classification
The alloy grades of commonly used aluminium strips are 1050, 1060, 1070, 1100, 3003, 3004, 5005, 5052, 8011, etc. Common states are O and H states.
|
Commodity |
Alloy |
Temper |
Thickness(mm) |
Width(mm) |
ID(mm) |
|
Mill Finish Aluminum Strip |
1050/1060/10701100/3003/ 30043105/5005/5052/5754/8011 |
O,H12,H14,H16,H18H22,H24, H26 |
0.2-4.0 |
10-200 |
76,152,305,405505 |
|
Aluminum Single Edge Strids |
1060 |
H24 |
0.2-2 |
30-90 |
Coil |
|
Aluminum Spacer Strip |
1050/10601100/3003 |
H18, H19, H22,H24, H26 |
0.15-0.5 |
10-150 |
305,405,505 |
|
Aluminum Transformer Strip |
1060/1070 |
O |
0.1-4.0 |
20-1500 |
405,505 |
|
Remarks : Special specifications need to be customized according to requirements. |
|||||
