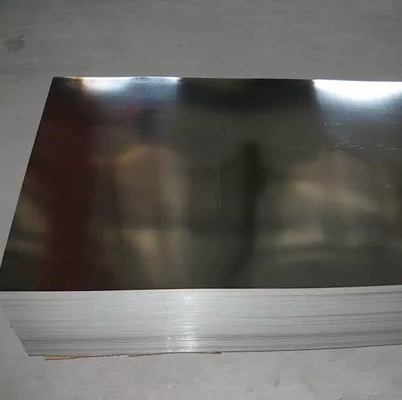

Tinsteelplate
1. Reference standard: GB/T 2520-2000, JIS G3303-2002 and DIN EN 10203-1991
2. Raw material: MR and SPCC
3.Thickness: 0.18 to 0.50mm
4. Width: 260 to 980mm
5. Coil diameter: ID 420mm or 508mm
6. Temper grade: T2, T3 and T4
7. Tin coating: ordinary 2.8 or 2.8g and 5.6g or 5.6g, we can produce according to customer's requests
8. Applications: paint, chemical and other usage can make battery, electric cable and other industries
9. Package: anti-rust paper, corner protected. Sheets or coils according customer's request.
Standard for Temper:
|
code |
Chinese Stardard |
Japanese standard |
American Standard |
European Standard |
International Standard |
|
|
GB/T 2520-2000 |
JIS G3303-2002 |
ASTM A623M-2002 |
DIN EN 10203-1991 |
ISO 11949-1995 |
|
T-2 |
TH52+SE |
T-2 |
T-2(53) |
T52 |
TH52+SE |
|
T-2.5 |
TH55+SE |
T-2.5 |
|
|
TH55+SE |
|
T-3 |
TH57+SE |
T-3 |
T-3(T57) |
T57 |
TH57+SE |
|
T-3.5 |
|
|
|
|
|
|
T-4 |
TH61+SE |
T-4 |
T-4(T61) |
T61 |
TH61+SE |
Currently we provide Batch Annealing (BA) tinplate.
Surface state of tinplate:
|
Marks |
Surface state |
Characteristics |
|
B |
Bright rough |
Glazed surface obtained after melting treatment of electrotinned smooth raw material strip featuring certain oriented rubstone figure. |
|
R |
Stone rough |
Glazed surface obtained after melting treatment of electrotinned raw material strip featuring certain oriented rubstone figure. |
|
S |
Silver rough |
Glazed surface obtained after melting treatment of electrotinned raw material strip with rough matt surface. |
Coating weight:
|
Classification |
Designation of tin coating weight |
Nominal tin coating weight(g/m2) |
Min average tin coating weight(g/m2) |
Remark |
|
Equal tin coating(E) |
1.1/1.1 |
1.1/1.1 |
1.8 |
All specification |
|
2.2/2.2 |
2.2/2.2 |
4.0 |
All specification |
|
|
2.8/2.8 |
2.8/2.8 |
5.0 |
All specification |
|
|
5.6/5.6 |
5.6/5.6 |
10.5 |
All specification |
|
|
Differential tin coating(D or A) |
2.2/1.1 |
2.2/1.1 |
2.0/0.9 |
All specification |
|
2.8/1.1 |
2.8/1.1 |
2.25/0.9 |
All specification |
|
|
5.6/1.1 |
5.6/1.1 |
5.05/0.9 |
All specification |
|
|
2.8/2.2 |
2.8/2.2 |
2.25/2.0 |
All specification |
|
|
5.6/2.2 |
5.6/2.2 |
5.05/2.0 |
All specification |
|
|
5.6/2.8 |
5.6/2.8 |
5.05/2.25 |
All specification |
