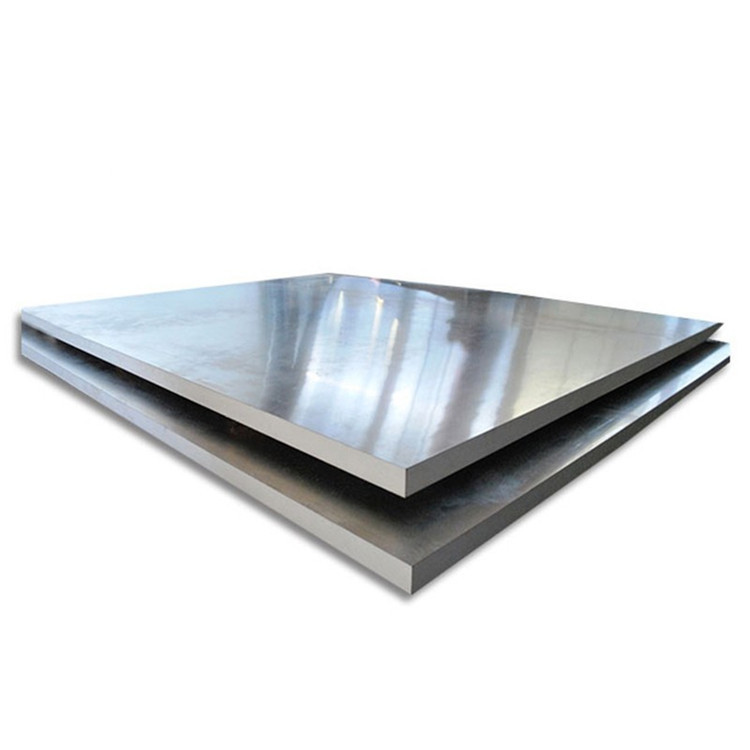

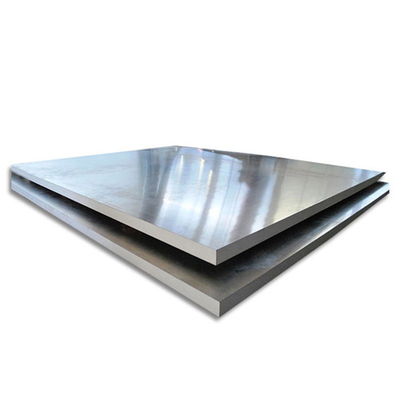

Cold Rolled 1mm 2mm 3mm Ss Plate 4*8 Ft 304 Stainless Steel Sheet
The main products are galvanized coil, pre-painted galvanized coil, cold rolled coil, hot rolled coil, stainless steel plate, stainless steel coil, aluminum sheet, lead plate and so on.
|
Product Name
|
Stainless steel plate sheet
|
|
Length
|
as required
|
|
Width
|
10-1000mm or customized size
|
|
Thickness
|
0.5-500mm or customized size
|
|
Standard
|
AISI,ASTM,DIN,JIS,GB,EN,etc
|
|
Technique
|
Hot rolled/cold rolled
|
|
Surface Treatment
|
2B,BA NO.1 NO.2 NO.3 NO.4,4K, 8K,2D, HL, etc.
|
|
Thickness Tolerance
|
±0.01mm
|
|
Material
|
201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L, etc
|
|
Application
|
Medical devices, building materials, chemistry, food industry, agriculture,ship components.
|
|
MOQ
|
1 ton , We can accept sample order.
|
|
Service
|
ODM/OEM
|
|
Grade
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
|
201
|
≤0.15
|
≤0.75
|
5.5-7.5
|
≤0.06
|
≤0.03
|
3.50-5.50
|
16.0-18.0
|
-
|
|
202
|
≤0.15
|
≤1.0
|
7.5-10.0
|
≤0.06
|
≤0.03
|
4.0-6.0
|
17.0-19.0
|
-
|
|
301
|
≤0.15
|
≤1.0
|
≤2.0
|
≤0.045
|
≤0.03
|
6.0-8.0
|
16.0-18.0
|
-
|
|
302
|
≤0.15
|
≤1.0
|
≤2.0
|
≤0.035
|
≤0.03
|
8.0-10.0
|
17.0-19.0
|
-
|
|
304
|
≤0.08
|
≤1.0
|
≤2.0
|
≤0.045
|
≤0.03
|
8.0-11.0
|
18.0-20.0
|
-
|
|
304L
|
≤0.03
|
≤1.0
|
≤2.0
|
≤0.035
|
≤0.03
|
9.0-12.0
|
18.0-20.0
|
-
|
|
309S
|
≤0.08
|
≤1.0
|
≤2.0
|
≤0.045
|
≤0.03
|
12.0-15.0
|
22.0-24.0
|
-
|
|
310S
|
≤0.08
|
≤1.5
|
≤2.0
|
≤0.035
|
≤0.03
|
19.0-22.0
|
24.0-26.0
|
-
|
|
316
|
≤0.08
|
≤1.0
|
≤2.0
|
≤0.045
|
≤0.03
|
10.0-14.0
|
16.0-18.0
|
2.0-3.0
|
|
316L
|
≤0.03
|
≤1.0
|
≤2.0
|
≤0.045
|
≤0.03
|
11.0-14.0
|
16.0-18.0
|
2.0-3.0
|
|
321
|
≤0.08
|
≤1.0
|
≤2.0
|
≤0.035
|
≤0.03
|
9.0-12.0
|
17.0-19.0
|
-
|
|
410
|
≤0.15
|
≤1.0
|
≤1.0
|
≤0.035
|
≤0.03
|
-
|
11.5-13.5
|
-
|
|
430
|
≤0.12
|
≤0.75
|
≤1.0
|
≤0.04
|
≤0.03
|
≤0.60
|
16.0-18.0
|
-
|
|
904L
|
≤2.0
|
≤0.045
|
≤1.0
|
≤0.035
|
-
|
23.0-28.0
|
19.0-23.0
|
4.0-5.0
|
|
2205
|
≤0.03
|
≤1.0
|
≤2.0
|
≤0.03
|
≤0.02
|
4.5-6.5
|
22.0-23.0
|
3.0-3.5
|
|
2207
|
≤0.03
|
≤0.80
|
≤1.2
|
≤0.035
|
≤0.02
|
6.0-8.0
|
24.0-26.0
|
3.0-5.0
|
|
630
(17-4PH)
|
≤0.07
|
≤1.0
|
≤1.0
|
≤0.035
|
≤0.030
|
3.00-5.00
|
15.5-17.5
|
-
|
| Chemical Properties of Frequently-used Stainless Steel Material Grade | |||||||||||
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
| S20100 | 201 | 1.4372 | SUS201 | ≤0.15 | 5.5-7.5 | ≤0.06 | ≤0.03 | ≤1.00 | 16.0-18.0 | 3.5-5.5 | - |
| S20200 | 202 | 1.4373 | SUS202 | ≤0.15 | 7.5-10.0 | ≤0.06 | ≤0.03 | ≤1.00 | 17.0-19.0 | 4.0-6.0 | - |
| S30100 | 301 | 1.4319 | SUS301 | ≤0.15 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.00 | 16.0-18.0 | 6.0-8.0 | - |
| S30400 | 304 | 1.4301 | SUS304 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-10.5 | - |
| S30403 | 304L | 1.4306 | SUS304L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-12.0 | - |
| S30908 | 309S | 1.4833 | SUS309S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 22.0-24.0 | 12.0-15.0 | - |
| S31008 | 310S | 1.4845 | SUS310S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.50 | 24.0-26.0 | 19.0-22.0 | - |
| S31600 | 316 | 1.4401 | SUS316 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31603 | 316L | 1.4404 | SUS316L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31703 | 317L | 1.4438 | SUS317L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 |
| S32100 | 321 | 1.4541 | SUS321 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-12.0 | - |
| S34700 | 347 | 1.4550 | SUS347 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-13.0 | - |
| S40500 | 405 | 1.4002 | SUS405 | ≤0.08 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 11.5-14.5 | ≤0.60 | - |
| S40900 | 409 | 1.4512 | SUS409 | ≤0.08 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 10.5-11.75 | ≤0.50 | - |
| S43000 | 430 | 1.4016 | SUS430 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤0.75 | 16.0-18.0 | ≤0.60 | - |
| S43400 | 434 | 1.4113 | SUS434 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | - |
| S44400 | 444 | 1.4521 | SUS444L | ≤0.025 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 17.5-19.5 | ≤1.00 | - |
| S40300 | 403 | - | SUS403 | ≤0.15 | 5.5-7.5 | ≤0.04 | ≤0.03 | ≤0.50 | 11.5-13.0 | ≤0.60 | - |
| S410000 | 410 | 1.40006 | SUS410 | ≤0.15 | ≤1.00 | ≤0.035 | ≤0.03 | ≤1.00 | 11.5-13.5 | ≤0.60 | ≤1.00 |
| S42000 | 420 | 1.4021 | SUS420J1 | 0.16~0.25 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 12.0-14.0 | ≤0.75 | ≤1.00 |
| S440A | 440A | 1.4028 | SUS440A | 0.60~0.75 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | ≤0.75 |
| S32750 | SAD2507 | 1.4410 | ≤0.03 | ≤1.2 | ≤0.035 | ≤0.02 | ≤0.80 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | |
| S31803 | SAF2205 | 1.4462 | ≤0.03 | ≤2.0 | ≤0.03 | ≤0.02 | ≤1.00 | 21.0-23.0 | 4.0-6.5 | 2.5-3.5 | |
| N08904 | 904L | 1.4539 | ≤0.0.3 | ≤2.0 | ≤0.035 | ≤0.03 | ≤1.00 | 18.0-20.0 | 23.0-25.0 | 3.0-4.0 | |
