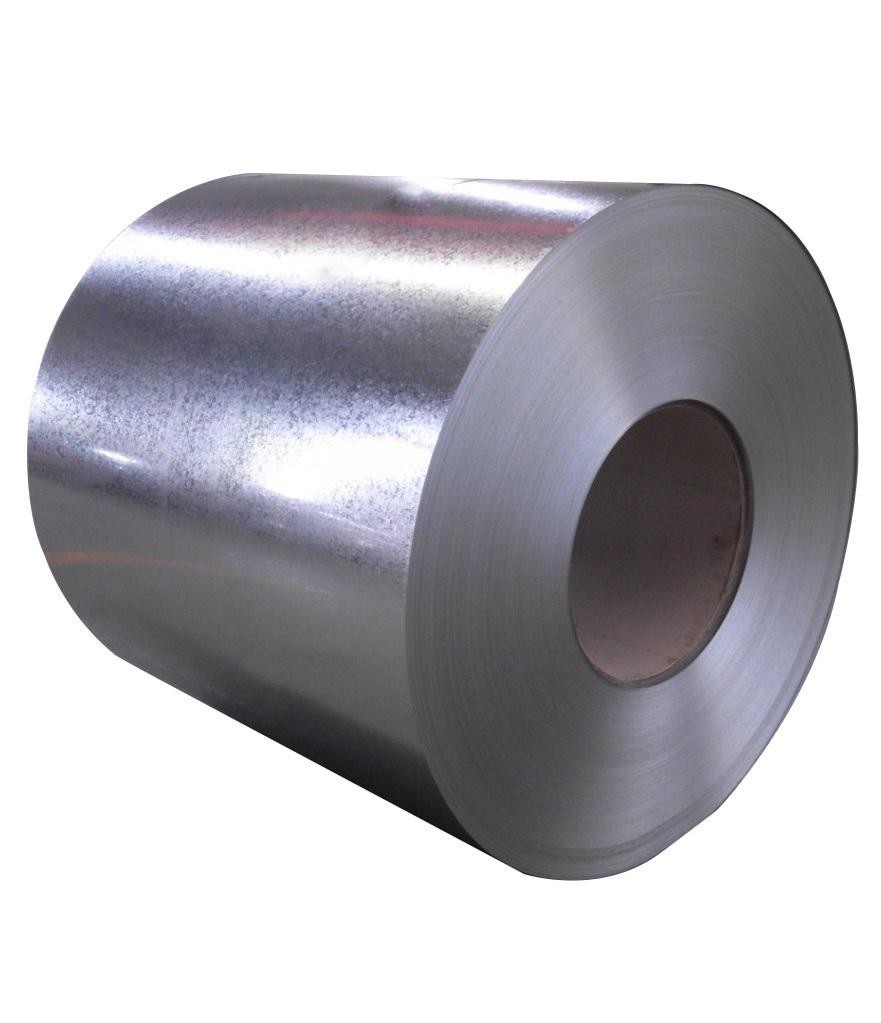

Zinc Coated Steel Hot Dip Galvanized Steel Rol Sgcc Hdgi Steel Coil
Galvanized Steel Coil(Zinc-coated ) in which a sheet of steel is immersed in a molten zinc bath so that the surface adheres to a sheet of zinc.At present the main use of continuous zinc production process, that is, the rolled steel sheet continuous dip in the melting zinc plating bath made of galvanized steel sheet;Alloy galvanized steel sheet.This kind of steel plate is made by hot dip method, but after the slot, immediately heated to a temperature of about 500 ℃, it make the generation of zinc and iron alloy membrane.This galvanized coil has good coating tightness and weldability.
|
Thickness
|
0.12mm-4.0mm
|
|
Coil ID
|
508/610mm
|
|
Surface Structure
|
Regular Sangle, Minimal Spangle, Zero Spangle, Big Spangle
|
|
Application
|
House Application, Building, Automobile, Instrument, Tin can
|
|
Advantage
|
1.Competitive price with raw material
2.Large production line 3.Excellent quality and abundant stock with fast delivery |
|
Width
|
100mm-1500mm
|
|
Zinc Coating
|
30-275g/m2
|
|
Surface Treatment
|
Oiled, Chromated
|
|
Technical Standard
|
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
|
|
Steel Grade
|
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
|
Type
|
Coil/Sheet/Plate/Strip
|
|
Thickness
|
0.12-6.00mm,or customer's requirement
|
|
Width
|
600mm-1500mm, according to customer's requirement
|
|
Type of Coating
|
Hot Dipped Galvanized Steel(HDGI)
|
|
Zinc Coating
|
30-275g/m2
|
|
Surface Treatment
|
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
|
|
Surface Structure
|
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
|
|
Quality
|
Approved by SGS,ISO
|
|
ID
|
508mm/610mm
|
|
Coil Weight
|
3-20 metric ton per coil
|
|
Package
|
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement |
|
Export market
|
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc
|
