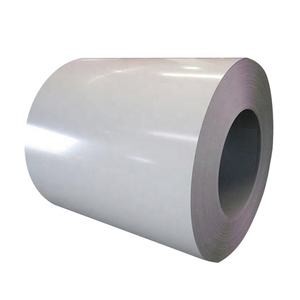

0.14mm-0.6mm Galvanized Steel Coil Sheet Roll Z275
Color Prepainted Galvanized PPGI Steel Coils is a product made of cold rolled steel plate and galvanized steel plate by surface pretreatment (degreasing, cleaning, chemical conversion), continuous coating (roll coating), baking and cooling. Coated steel sheet has light weight, beautiful appearance, good corrosion resistance and can be processed directly. It provides a new raw material for construction, shipbuilding, vehicle manufacturing, household electrical appliances, electrical industry, etc. It has played a good role in replacing wood with steel, efficient construction, energy saving, pollution prevention and other good results
|
Technical Standard
|
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
|
|
Steel Grade
|
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
|
|
Type
|
Coil/Sheet/Plate/Strip
|
|
Thickness
|
0.12-6.00mm,or customer's requirement
|
|
Width
|
600mm-1500mm, according to customer's requirement
|
|
Type of Coating
|
Hot Dipped Galvanized Steel(HDGI)
|
|
Zinc Coating
|
30-275g/m2
|
|
Surface Treatment
|
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
|
|
Surface Structure
|
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
|
|
Quality
|
Approved by SGS,ISO
|
|
ID
|
508mm/610mm
|
|
Coil Weight
|
3-20 metric ton per coil
|
|
Package
|
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
|
|
Export market
|
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc
|
