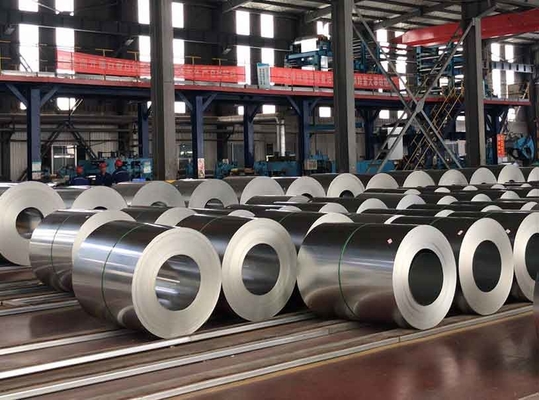

Low Carbon Galvanized Steel Coil Strip Dx51 Z275 Zinc Coated Hot Dipped
Galvanised steel is ordinary carbon construction steel that has been galvanised to prevent corrosion and rusting, thus extending the life of the steel. It is commonly used in building facades, such as glass curtain walls, marble curtain walls, aluminium curtain walls as columns and force materials, or for outdoor telecommunications towers, highways and other open-air construction steel called galvanized steel, of which galvanizing is divided into galvanized and hot-dip galvanized.
DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ, SECC,SECE, BLCE+Z, BLDE+Z, BUSDE+Z or Customer’s Requirement RAL,wood grain pattern, camouflage pattern , stone pattern, matte pattern , high gloss pattern , flower pattern, etc
|
Thickness
|
0.12mm-4.0mm
|
|
Coil ID
|
508/610mm
|
|
Surface Structure
|
Regular Sangle, Minimal Spangle, Zero Spangle, Big Spangle
|
|
Application
|
House Application, Building, Automobile, Instrument, Tin can
|
|
Advantage
|
1.Competitive price with raw material
2.Large production line 3.Excellent quality and abundant stock with fast delivery |
|
Width
|
100mm-1500mm
|
|
Zinc Coating
|
30-275g/m2
|
|
Surface Treatment
|
Oiled, Chromated
|
|
Technical Standard
|
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
|
|
Steel Grade
|
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
|
Type
|
Coil/Sheet/Plate/Strip
|
|
Thickness
|
0.12-6.00mm,or customer's requirement
|
|
Width
|
600mm-1500mm, according to customer's requirement
|
|
Type of Coating
|
Hot Dipped Galvanized Steel(HDGI)
|
|
Zinc Coating
|
30-275g/m2
|
|
Surface Treatment
|
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
|
|
Surface Structure
|
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
|
|
Quality
|
Approved by SGS,ISO
|
|
ID
|
508mm/610mm
|
|
Coil Weight
|
3-20 metric ton per coil
|
|
Package
|
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement |
|
Export market
|
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc
|
